Comparsion IP9255
 IP9255Pro IP9655
 IP9855
 IP9855Pro
Power 100~240VAC 8A

Quick power up		 100~240VAC 8A
Leakage Current detect
Quick power up		 100~240VAC 10A
Spike/Surge Canceling
Quick power up		 100~240VAC 10A
Spike/Surge Canceling
internal 40A switching		 100~240VAC 10A
Spike/Surge Canceling
internal 40A switching
networkEthernetEthernetEthernet(opt model:wlan)Ethernet(opt model:wlan)Ethernet(opt model:wlan)
Extension ❌ ❌ ❌ USB sensorUSB sensor
Voltmeter ❌ ✔️ ❌ ❌✔️
Ammeter ❌ ✔️✔️❌✔️
Inrush Current40A40A80A350A350A
Voltage Spike Reduce by energerby energer by phase shiftby phase shift by phase shift
Function Direct Control


 Direct Conrol
Monitor

 Direct control/iot
monitor

 Direct control/iot


 Dirct control/iot
monitor
failure Notification
web server
1 ping watchdog🔭
8 scheduler🕐
SNMP V1
Modbus/TCP
CGI/CNT




web server
1 ping watchdog🔭
8 scheduler🕐
SNMP V1
Modbus/TCP
CGI/CNT




web server/linux
1 ping watchdog🔭
8 scheduler🕐
SNMP V1&V2
CGI/CNT/MQTT
SSL🔑		 web server/linux
1 ping watchdog🔭
30 scheduler🕐
TSL MAIL📧
SNMP V1,2,3
SSH/SYSlog
CGI/CNT/MQTT
EAPOL(IEEE802.1x)
SSL🔑		 web server/linux
1 ping watchdog🔭
30 scheduler🕐
TSL MAIL📧
SNMP V1,2,3
SSH/SYSlog
CGI/CNT/MQTT
EAPOL(IEEE802.1x)
SSL🔑
Application Control power
home appliance
Home appliance
vending machine
AP/router/switch


Control/Monitor
Home appliance
vending machine
AP/router/switch



Control/Monitor/Notification
Home appliance
vending machine
AP/router/switch
led/T5 lighting arrays



Control power
Sever mining
vending machine
led/T5 lighting arrays
Electric stove
UPS management
EAPOL(IEEE802.1x)
Earthquake disaster management 		Control/Monitor/Notification
Sever mining
vending machine
led/T5 lighting arrays
Air conditions
UPS management
EAPOL(IEEE802.1x)
Earthquake disaster management
Grade 👍👍👍 👍👍👍👍 👍👍👍👍 👍👍👍👍 👍👍👍👍👍

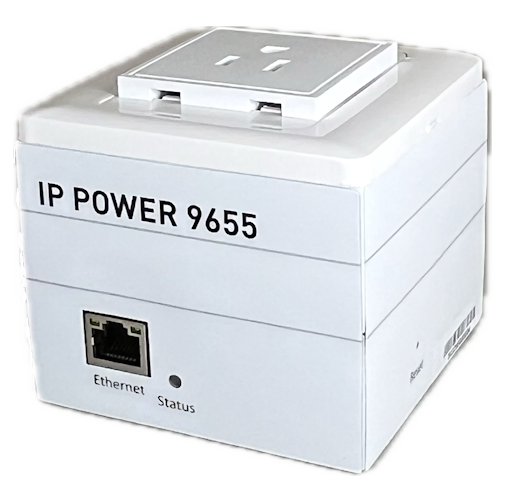

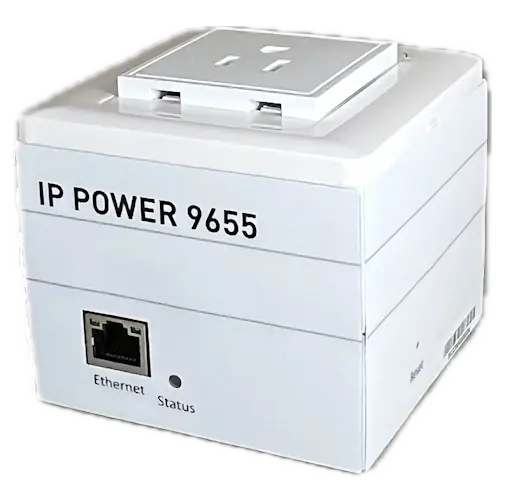

1 Port

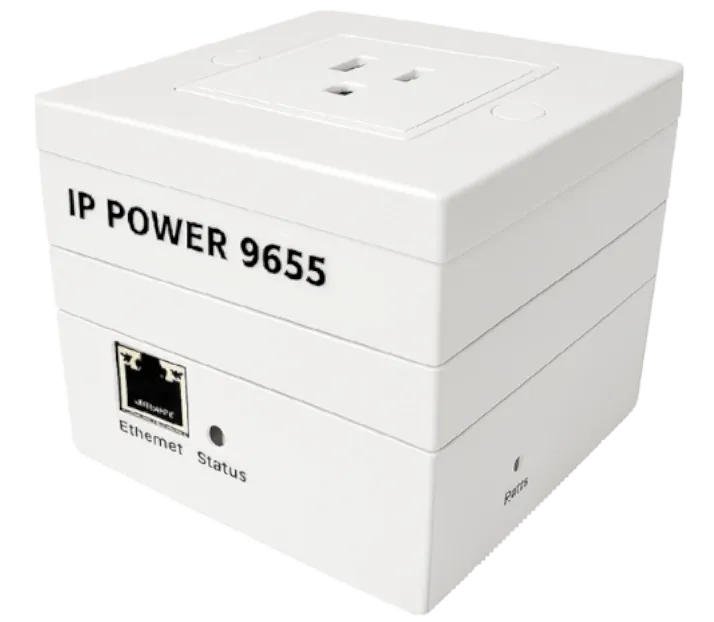

Pic 02

9655

single port compate remote
power controller, with zero cross
design. corrent meter

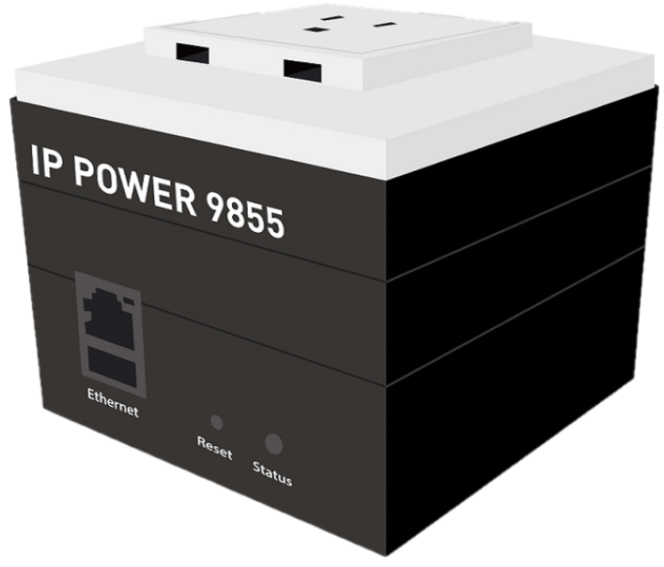

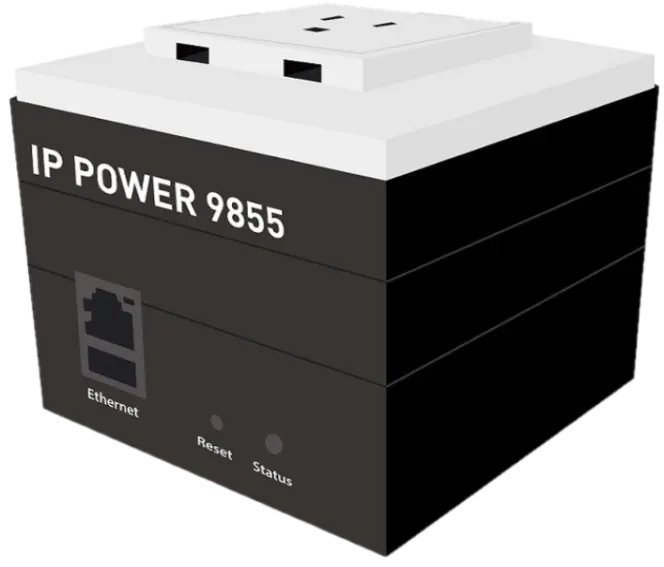

Pic 04

9855

single port compate remote
power controller, with zero cross
design. corrent meter

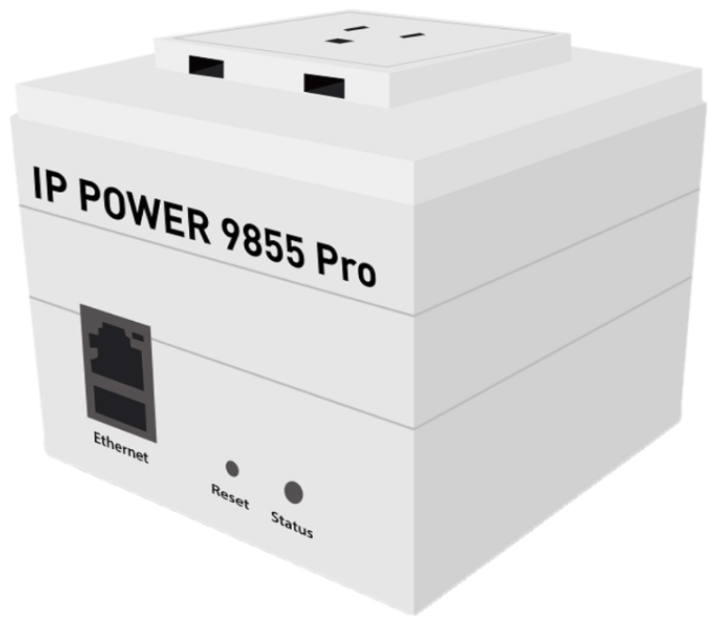

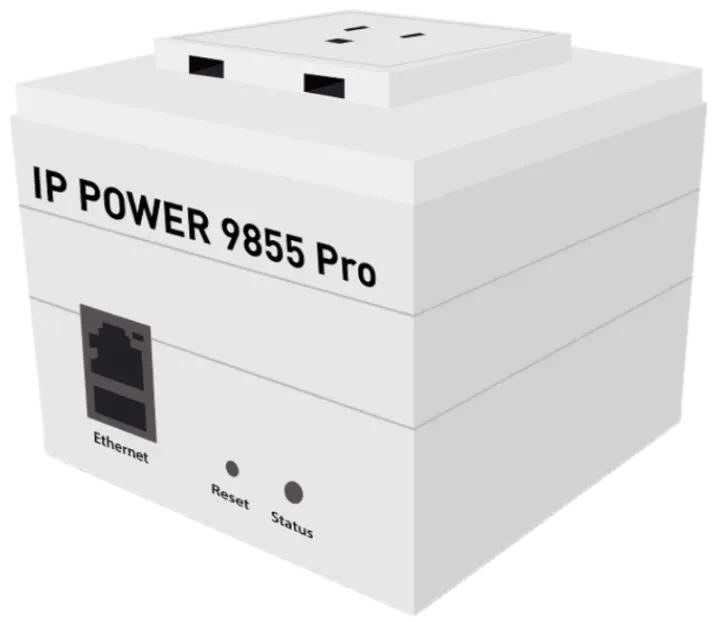

Pic 05

9855PRO

single port compate remote
power controller, with zero cross
design. corrent meter

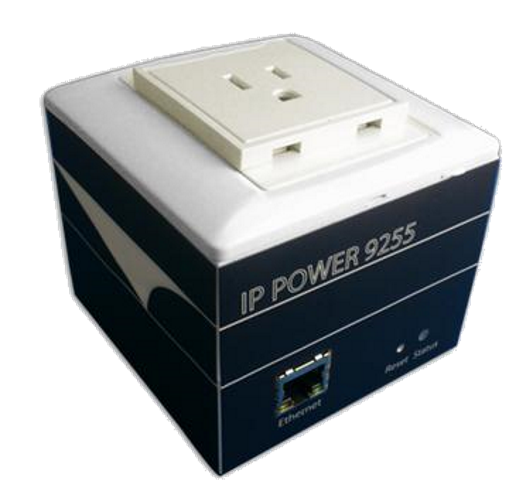

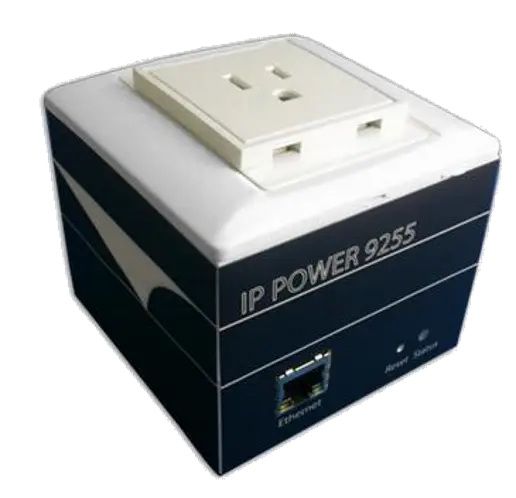

Pic 01

9255

single port compate remote
power controller.
for t5 flourescent lights

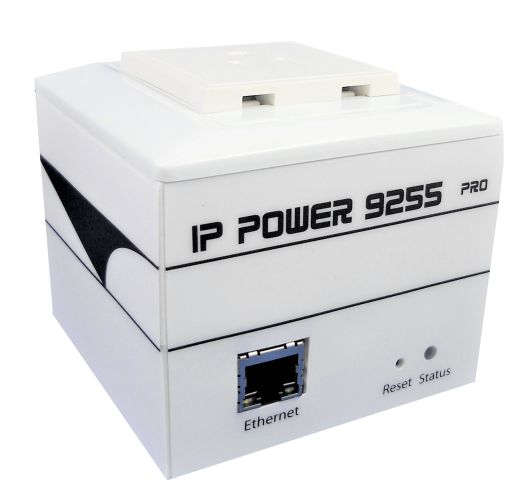

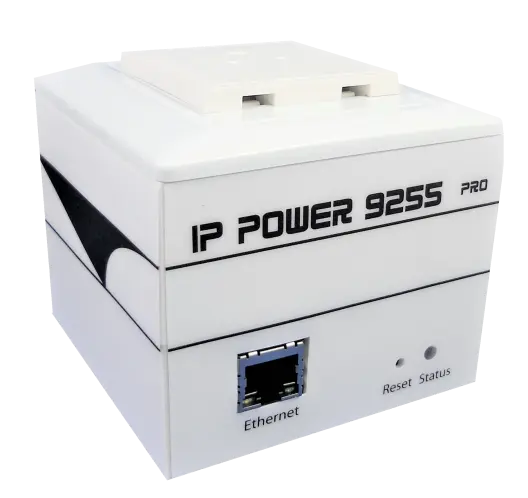

Pic 03

9255PRO

single port compate remote
power controller, with zero cross
design. corrent meter
