INTRODUCTION

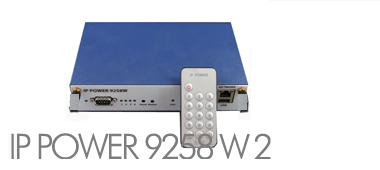

Remote power controller via web browser of PC/Smartphone (Windows, Android iOS ) HTTPS/SSL, Current meter of each port, detect temperature Free Android APP to control directly, Control ON/OFF thr. Email, QR code easy login for smartphone, USB Camera Monitoring, Chart for accumulated WATT each port consumed, Line chart of consumed current, IR Remote Control, Auto Ping, Schedular, Remote Access the current Temperature in extraUSB Dun drive, Develop OWN langrage in webpage ! IP Power 9258W2 is a new generation of the Power Distribution Unit (PDU) Remote Power Control (RPC) system. With embedded web server and HTTPS protection, 9258W2 supports higher grade security as working on Internet. User can control power easily and more safely through the web browser on Windows PC or on Smartphone like Internet Explorer IE, Firefox, Google Chrome, Safari (iOS) and Android system. 9258W2 allows user to remote control power up to 4 separate devices on/off via network. As support SSL SNMP, user can use public email like Gmail/Hotmail/Yahoo Mail to get the email as the ON/OFF status change. User can also control by e-mail without doing port forwarding/port mapping and search the other IP Device in webpage directly. Besides contorl through web browser, there is Android Apps name "IP Power" for Android user to control the outlet power turn ON/OFF, get the meter reading of Current/Voltage/Temperature and q uick se arch device in LAN/WAN Android phone/touch panel. User can also use the IR remote controller which comes with 9258W2 to control outlet on/off directly by the handheld remote controller without need PC operation, specially benefit in no networking. no PC system environment or emergency use for quick response in second. Not only control manually, 9258W2 supports Auto Ping, Time Scheduler which is more suitable for factory/office/home automation. Besides power control, through 9258W2, user can also check the power usage WH (watt per hour), current consumption of each port, and Temperature value, LOG information send LOG to assign IP(Syslog), get consumed history LIVE Line Chart in webpage. IP Power 9258W2 also can connect USB Camera to view the area near 9258W2. For smart phone customer, 9258W2 has QR code of different network to log in fast and easy. Use can directly search the other IP Device in webpage directly. For system integrator, there are several popular developing tolls like TelNet, SNMP and HTTP Command (SDK) for 2 nd development. The various applications of the 9258W2 includes : Power Management, Server Management, Internet Controllable Timer, System Integration, Remote Power Control in Remote locations.... etc. User Friendly. Convenience Powerful !
