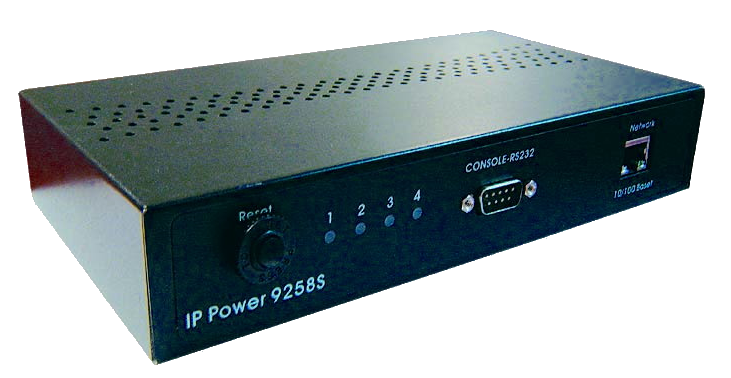

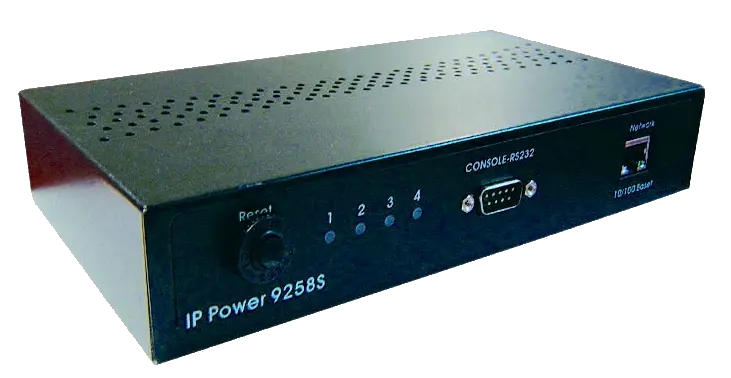

9258
HTTP Web server
Http/cgi
Quick power up
Economy
| Comparsion | IP9258 |
IP9658 |
IP9858 |
IP9850 |
|---|---|---|---|---|
| Power | 110VAC 15A, 220VAC 10A |
110VAC 15A, 220VAC 10A |
110VAC 15A, 220VAC 10A |
110VAC 15A, 220VAC 10A |
| switching | Coil Relay reboot state reset | Coil Relay reboot keep state | Coil Relay reboot keep state | Ltached Relay reboot keep state |
| Outlet | NEMA5/C13 | NEMA5/C13 | NEMA5/C13 | UK/GM/AU/FR/USA |
| Button | ❌ | ❌ | ❌ | 4 |
| Ammeter | ❌ | ✔️ | ❌ | ❌ |
| Extension | RS232 | ❌ | ❌ | ❌ |
| Voltage Spike Reduce | by energy | by phase shift cancellation | by energy | by energy |
| Function | Network Control 4 Ping Watchdog🔭 8 scheduler🕐 Quick Power up |
Network Control 4 Ping Watchdog🔭 8 scheduler🕐 Quick Power up |
Network Conrol 4 Ping Watchdog🔭 30 scheduler🕐 |
Network control 4 Ping Watchdog🔭 30 scheduler🕐 |
| web server SNMP V1 Modbus/Tcp CGI/CNT |
web server IPv4/6 SNMP V1 Telnet/Syslog SSL🔑 CGI/CNT(MQTT) TLS MAIL 📧 Option Model WLAN |
web server Ipv4/6 SNMP V1,2,3 ModbusTcp/Telnet/SYSlog SSL🔑 CGI/CNT(MQTT) VPN TLS MAIL 📧 Option Model WLAN Option Model EAPOL(IEEE802.1x) |
web server IPv4/6 SNMP V1,2,3 ModbusTcp/Telnet/SYSlog SSL🔑 CGI/CNT(MQTT) VPN TLS MAIL📧 Option Model WLAN Option Model EAPOL(IEEE802.1x) Country type Outlet |
|
| Application | Control power
Office appliance Home appliance vending machine AP/router/switch watchdog | Control power
Sever mining Office appliance Home appliance AP/router/switch watchdog lighting arrays scheduler kiosk power reboot sequence |
Control power
Office appliance Home appliance AP/router/switch watchdog lighting arrays scheduler kiosk power reboot sequence |
Control power
Sever mining AP/router/switch vending machine lighting arrays scheduler Power Audio kiosk power reboot sequence |
| Grade | 👍👍👍 | 👍👍👍👍 | 👍👍👍👍 | 👍👍👍👍👍 |
IP POWER 4 Port PDU

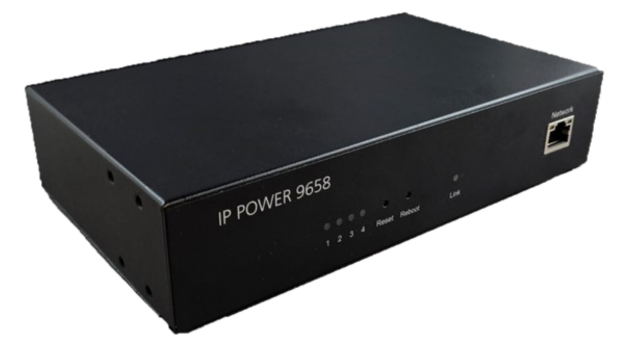

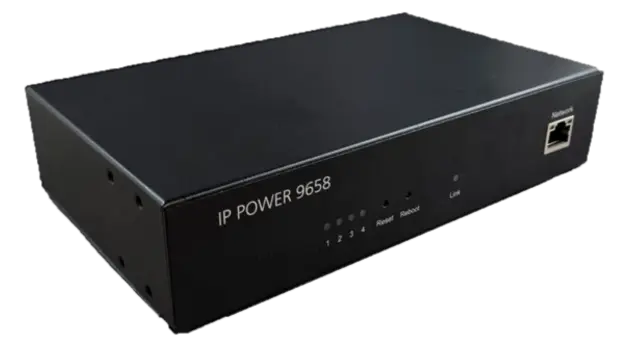

9658
HTTP/HTTPS Web server,ipv4/ipv6/mDNS
Http/cgi,MQTT
Quick power up
Active surge suppressor
Ammeter
Economy

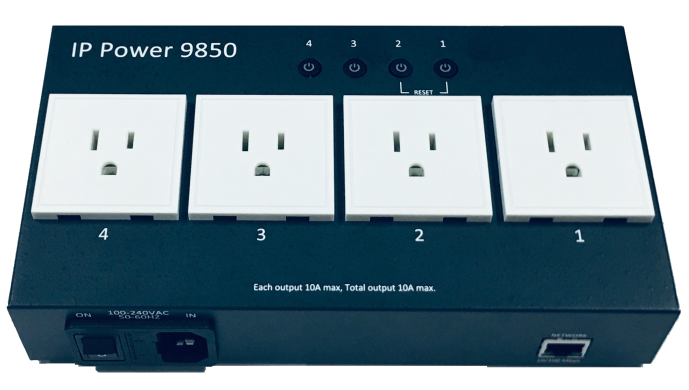

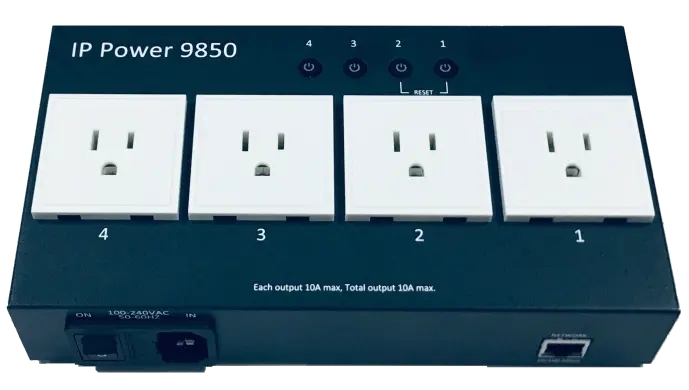

9850
HTTP/HTTPS Web server,ipv4/ipv6/mDNS
Http/cgi,MQTT
30 scheduler
Latch Relay,stable
Country type outlet
Option Model EAPOL(IEEE802.1x)
Option model Wireless

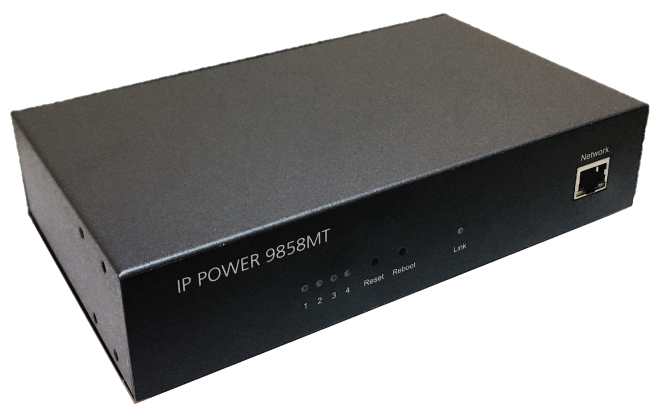

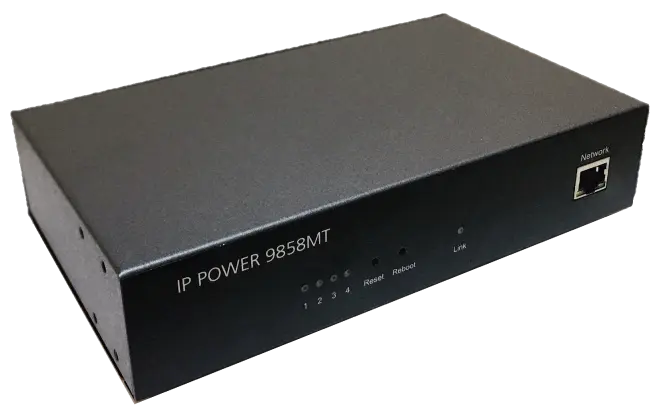

9858MT
HTTP/HTTPS Web server,ipv4/ipv6/mDNS
Http/cgi,MQTT
30 scheduler
Option Model EAPOL(IEEE802.1x)
Option model Wireless

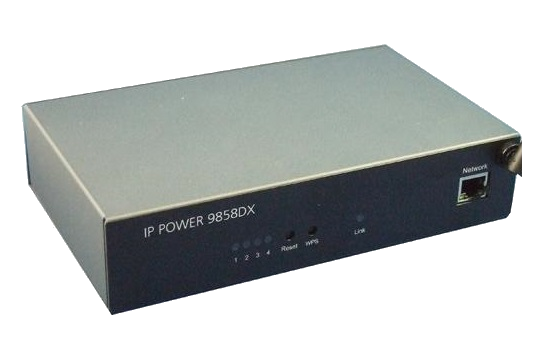

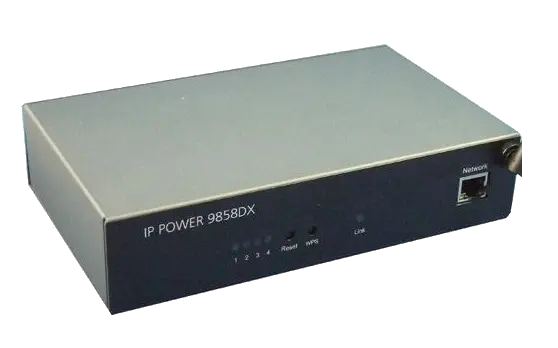

9858DX
highgrade components, syslog
pop3 email control, auto ping,
low temperature & scheduler

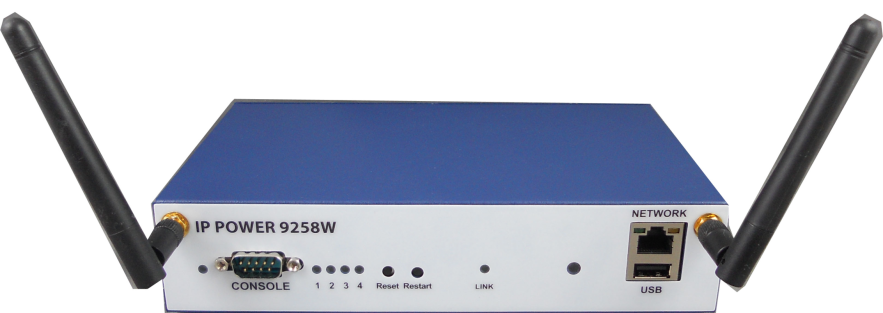

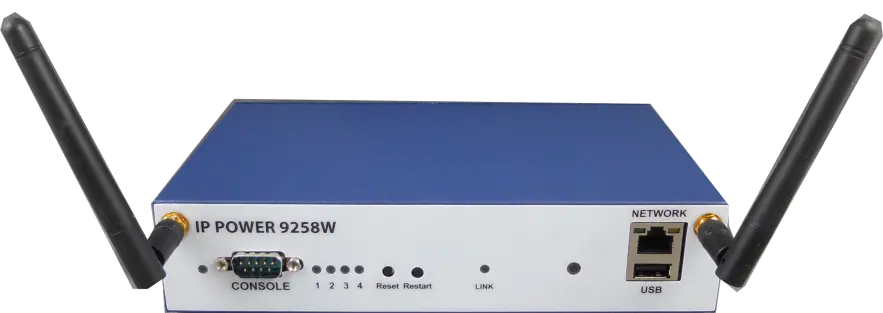

9258W2
4Port with current meter for each port
usb cam monitoring
9268SQ
multiple ip power devices with
wireless control from one master
device. can control up to 16 ports
