INTRODUCTION

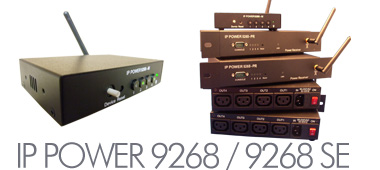

"One Master device controls 4 IP Power receivers (up to 16 Output ports) by RF up to distance of 50 meters all via Internet" View Presentation on the 9268 The IP Power 9268 is a new Remote Power Control that is only available at Aviosys . This device comes in a 5 piece set. A master transmitter can connect up to 4 separate IP Power boxes (16 Output ports) . Through the use of Radio Frequency (RF) the master device can control the ON or OFF of each port in each box . Each slave device can be configured wirelessly up to 50 meters away in separate locations . Additionally with the 9268's built in remote controller the device can either be controlled locally or remotely through the internet . CGI commands and SDK are available for integration .
FEATURES
- One Master Connects 4 Receiver devices
- Each slave device can connect up to a distance of 30 - 50 Meters
- Email Capabilities
- Supports: TCP/IP, Http API, Web Server, SMTP Server, DDNS, Log file, CNT, XML
- Customize the name of each device and each port of each device
- Remote controller on Master device for local control
- Base 64 Password Encryption
- Log Capability
- Bi-Directional safety control communication for device status retrieval.
- Http CGI commands for integration
- CNT Technology : No Port Forwarding Needed in Router - Just Plug Play
- IP Service : Easily Find your device on the internet without having to remember complicated IP's
- Compatible with IP Power Center Power Management Windows Software.
- Built in scheduler to schedule when devices will be turned on or turned off.
SPECS
| 9268-M (Master) | |
| Dimensions | 75 x 120 x 25mm |
| Input DC | 5DCV |
| RF Frequency | 433 / 315MHZ |
| 9258-PR (Power Receiver) | |
| Dimensions | 115 x 260 x 45mm |
| Power input | 15A/100~120VAC 10A/220~240VAC |
| RF Frequency | 433 / 315MHZ |
